Slide 17 of 24

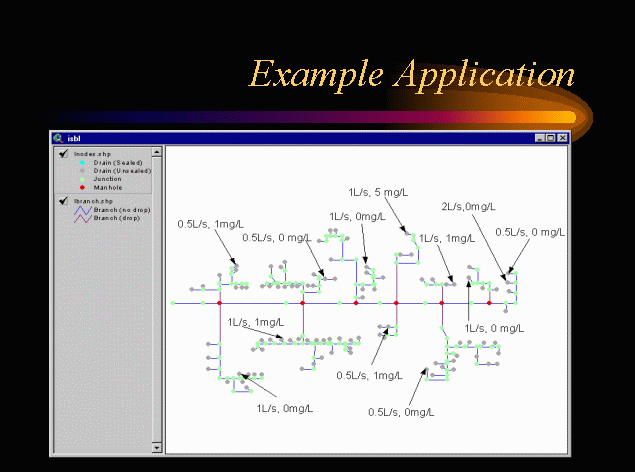

To test the naUTilus/ArcView tool, hypothetical flow data was used to examine the effects of varying conditions. Shown above are the flow rates and concentrations used for the "baseline" condition. When testing one condition, all other conditions were held constant. Other baseline conditions are shown on the next slide.
