Introduction to Arc Hydro Groundwater
Course exercise for CE 374L
Groundwater
University of Texas at Austin
Prepared by Marcelo Somos and David R. Maidment
March 2012
DESCRIPTION
A geographic information system (GIS) is designed to
capture, manage, analyze, and display geographically referenced information.
This exercise introduces you to GIS and describes how information is derived
from the spatial data in a map. Particular attention is given to Arc Hydro
Groundwater, which is a customization of the ArcGIS Geographic Information
System to describe groundwater data and modeling.
CONTENT
Computer and Data Requirements
2.
Viewing and querying the layers
Appendix 1: Installation of the ArcGIS Desktop on your
computer
After completing this exercise, you will be able to understand
how data is managed in ArcGIS in thematic layers, visualize and query the attributes
of those data layers, and calculate the Darcy flux and flow per unit width at
two well locations in an aquifer.
Computer and Data
Requirements
To complete course exercises, you need the
following software:
ArcGIS Desktop (Only one product in this category is
required).
ArcView 10
ArcEditor10
ArcInfo 10
We are going to use ArcInfo
10, the most powerful of these options.
You can follow the steps in Appendix 1 to
install ArcGIS 10 on your personal computer, or you can use a computer in the
Learning Resource Center on the third floor of ECJ, where the software is
already installed.
1. Accessing ArcGIS Online

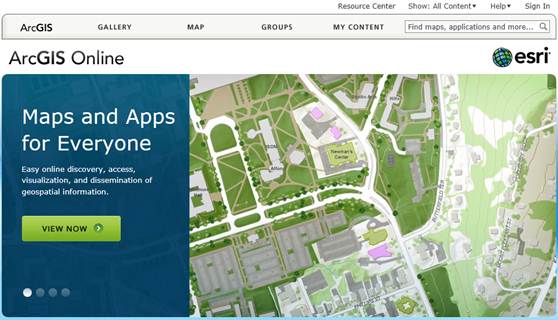

The data of this exercise is from
the ArcGIS online at http://www.arcgisonline.com/home/
At the upper right of the display,
change Show: Web Content Only to Show: All Content.

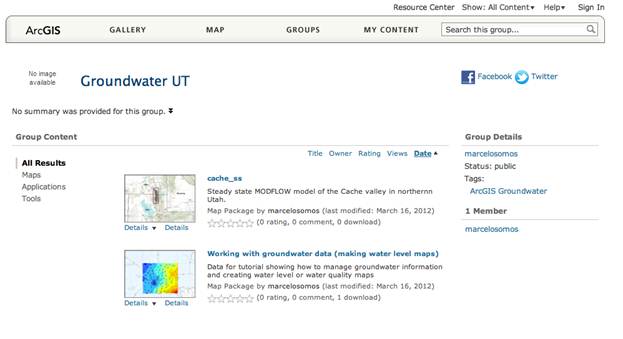

Click Groups and search for Groundwater UT.
And you’ll see a Map Icon called Working with groundwater data (making water
level maps)

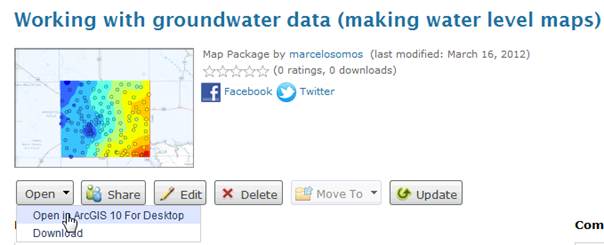

Click on the Working with groundwater data (making water level maps) and you’ll open up the following page, and you
want to Open in ArcGIS 10 for Desktop

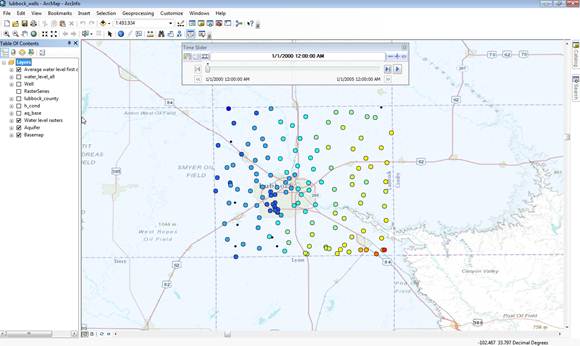

and this automatically opens up
ArcGIS 10 Desktop and displays the data in a map. Pretty cool!
When you open the map you may see more layers than this displayed. Click off the check marks in the legend bar
on the left hand side of the map to show or hide individual map layers. Turn on the RasterSeries layer and move the slider bar in the Time Slider window to see how the
Piezometric head field changes from 2000 to 2005. These head field were computed in each year
by averaging the water levels recorded during the first quarter of the year
when there is not much pumping in the aquifer.
Use File/Save
As … to save your ArcGIS Map file, Lubbock_wells.mxd. This preserves the state of your map display
so you can reopen it again last as you left it.
2. Viewing and Querying the Layers
In the list of layers on the left of the map, you
can click the display of each layer on or off with the check box to the left of

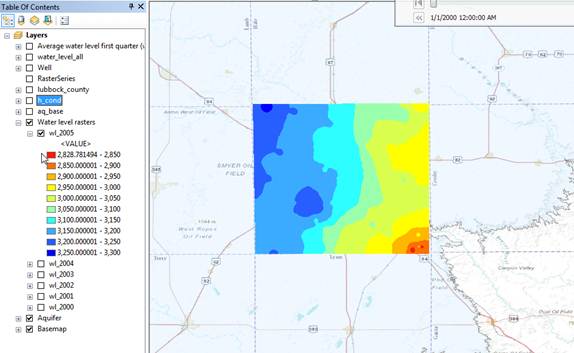

the layer name. For example, if you expand
[+] Water Level Rasters and check on
wl_2005 and check off Average water level first quarter (winter),
you’ll get a map like this:

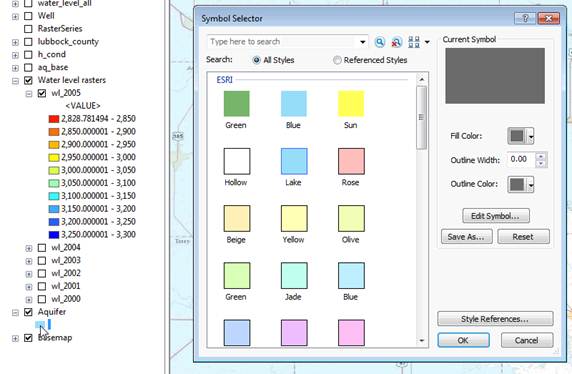

You can edit the color of your layers. For example,
if you expand [+] Aquifer and click
on the rectangle you can change the display color.

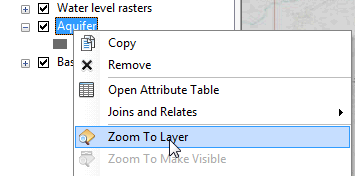

You can zoom to any layer you would like to see by
right clicking and selecting
, but remember to open that layer

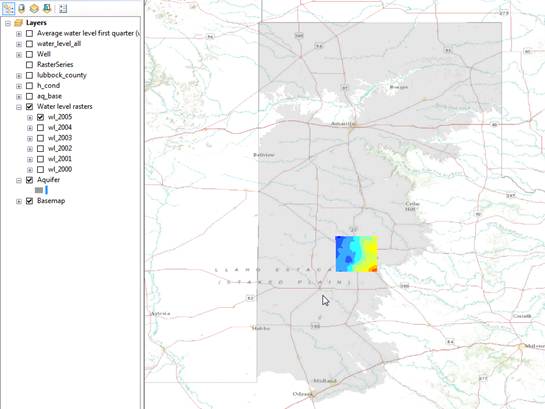

by checking the box in front of it first. For example, let’s zoom to the Aquifer layer, and see what
happens.
If you mess up the display at some point and want
to return to the display you had before, hit the
arrow at the top of the display.
This is part of the Ogallala aquifer http://en.wikipedia.org/wiki/Ogallala_Aquifer; which covers an area of approximately 174,000 mi˛
(450,000 km˛) in portions of the eight states.
We are working in an area around Lubbock. 2005 water level map is showed below.

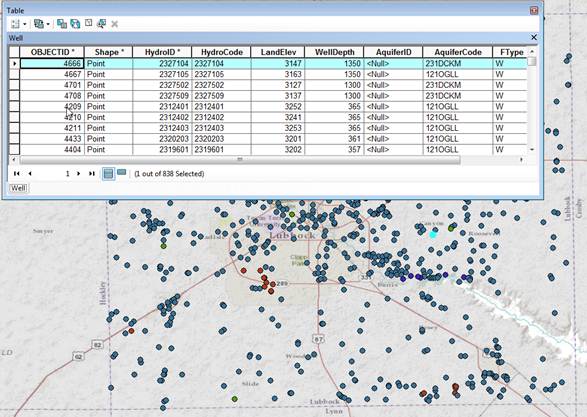

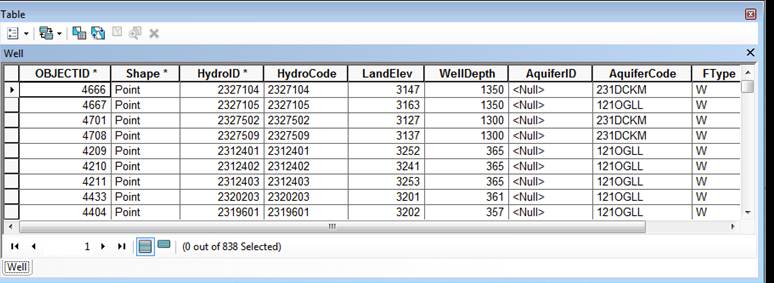

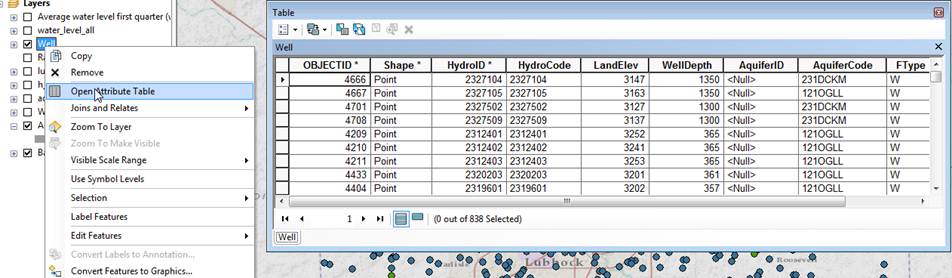

You can access the attributes of a particular
feature in a layer by opening the attribute table. For example, right click on Well and select Open Attribute Table
If you click on the row for HydroID* 2327104 in the table, notice how it is selected also in
the map. This is a key idea of GIS – the
association of the geometry of a feature with descriptive attributes in a
table.
If you scroll along to the end of this table,
you’ll see various attributes of each well as Land Surface Elevation (ft above Geodetic Datum) and the Well Depth (ft below the land surface to the bottom of the well).

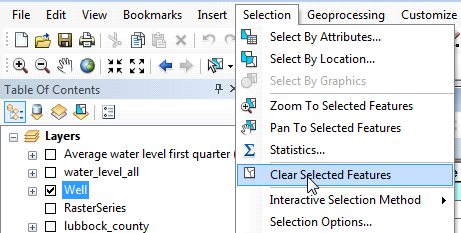

Use Selection/Clear Selected Features to
unselect well 2327104 in the display.

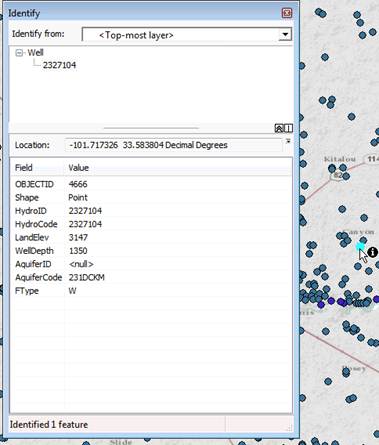

If you
click on
(Identify), you will be able to access the
attributes of an specific point in the map just clicking on it, for example
lets select the well HydroID* 2327104 as
it was described before. Select (Identify) and click on the well HydroID* 2327104 in the map. Now the atributes of that well are displayed.
Lets
unselect the well HydroID* 2327104, and
close the Identify windows. Also let check on just the Water level
Rasters\wl_2005 (wl_2005 stands for water level 2005) and Basemap and make a
zoom out using
.

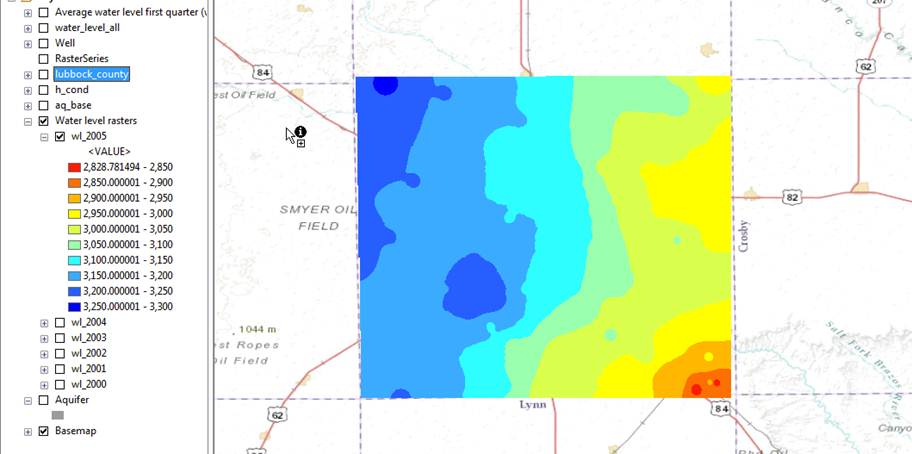

If we check the colors of the map and their value in the wl_2005 legend at the
left side of the screen, we can infer that the water gradient decreases from
the northwest corner to the southeast corner of the rectangle. Lubbock is more
or less in the middle of the rectangle.
Use File/Save to save your ArcMap map file.
Check off
Water level raster and check on the Well feature class. Select the wells HydroID 2325304 and HydroID 2326512
using the following procedure..

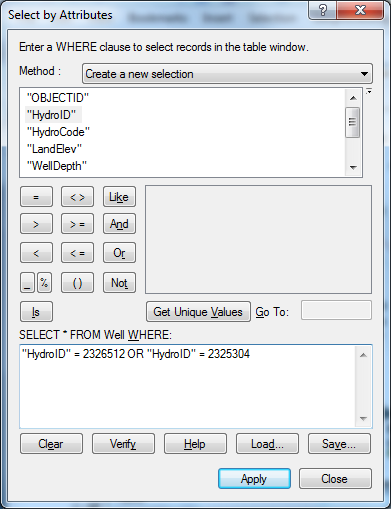

Open the Attribute table of the Well feature class and choose Select by Attributes
Use the
selection expression "HydroID" = 2326512 OR "HydroID"
= 2325304

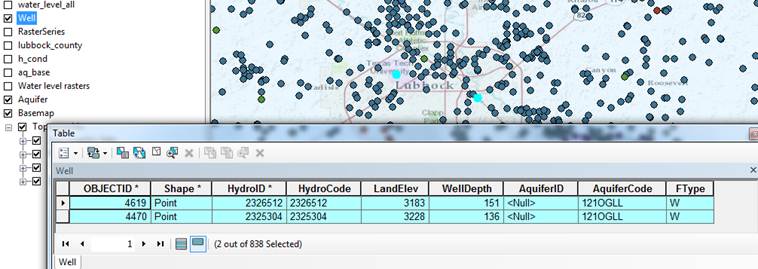

And click
on the blue box at the bottom of the attribute Table to isolate the two
selected wells in the table.

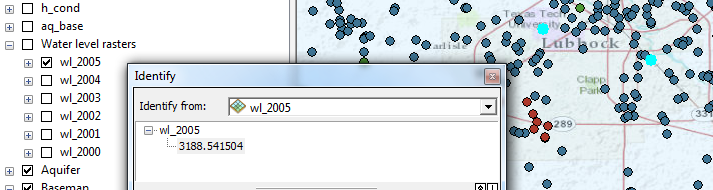

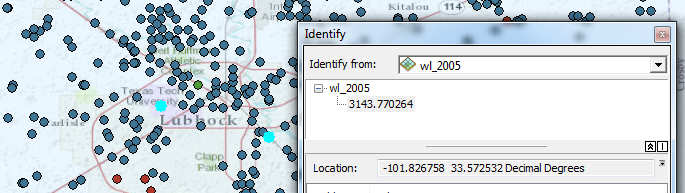

Check on
the Water level raster, and use the Identify tool
,
changing the label Identify from:
<Top-most layer> to Water
level rasters\wl_2005. The information for the water level 2005 at the location of the well HydroID 2325304 will be shown.
and the elevation is 3188.5 ft above datum.
If this
inquiry is repeated the location of the second well, 2326512, the elevation
obtained is 3143.7 ft. This means that the head difference between
the two wells is 3188.5 - 3143.7 = 44.8 ft.

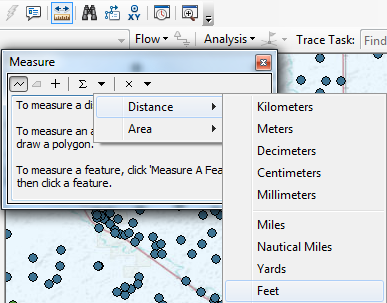

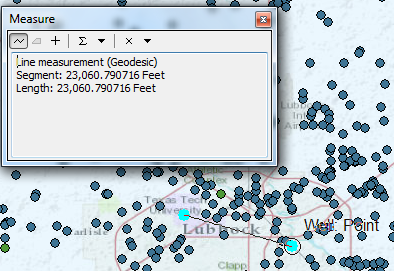

Using
(measure) tool, it is possible to measure the
distance between the two selected wells. You need to change the distance units
to feet as shown below.
Click on
one well and then the other and you’ll see that the distance between the two
wells is 23060.8 ft. Hence, the piezometric
head gradient is 44.8/23060.8 = 0.001943 or ~ 0.2%.
If we
make similar Inquiries of Aquifer Base (aq_base) and Hydraulic
Conductivity (h_cond),
we find that the values for the two wells are:
|
Well |
Aquifer Base (ft) |
Hydraulic Cond. (ft/day) |
Piezometric Head |
Saturated Thickness (ft) |
|
2325304 |
3079.9 |
75 |
3188.5 |
108.6 |
|
2326512 |
3028.8 |
75 |
3143.7 |
114.9 |
Now, with
this information we can estimate the Darcy flux at the two wells (both have the
same Hydraulic Conductivity). The head
gradient is considered negative because the head decreases in the direction of
flow.
and the discharge per unit width, Qw
is obtained by multiplying the Darcy flux by the saturated thickness of 108.6 ft at Well 2325304:
A similar
computation for Well 2326512 yields Qw =
16.8 ft2/day
(1) Prepare
a map showing the piezmetric head field of the
Ogallala Aquifer in Lubbock County.
(2) Choose
another pair of wells somewhere in the aquifer with one well “down gradient”
from the other and perform the same computation as shown in the exercise to
estimate the Darcy Flux and flow per unit width at each of the two wells.
Ok,
you’re done!
Instructions
for Installation of ArcGIS Desktop on your Computer
These instructions assume that you have a CD
containing ArcGIS for Desktop for student use.
Installation
Steps
1.
Check supported operating system
before the installation at http://resources.arcgis.com/content/arcgisdesktop/10.0/arcgis-desktop-system-requirements.

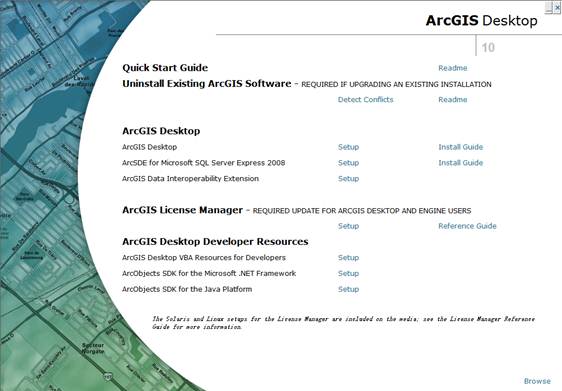

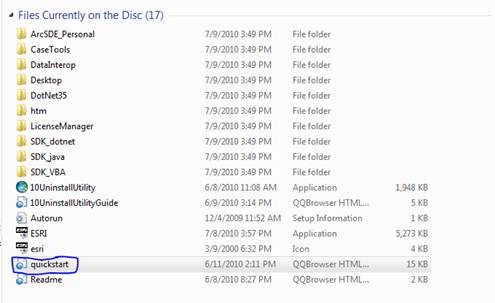

2. Insert ArcGIS Desktop DVD and in the menu folder,
select quickstart so that you can refer to the installation guidance.

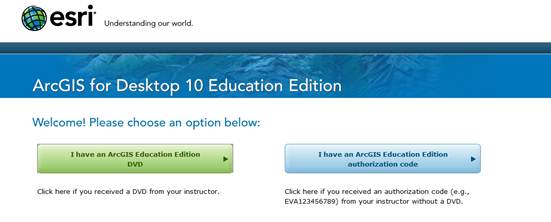

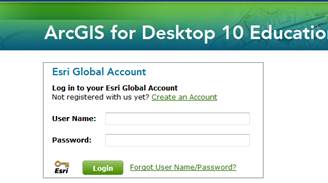

3. Visit http://www.esri.com/software/landing_pages/arcgis/desktop-ed.html to activate your authorization number first (the
12-digit number is inside your CD cover). Select “I have an ArcGIS Education
Edition DVD”, create your own account, and enter your authorization number to
activate your GIS.

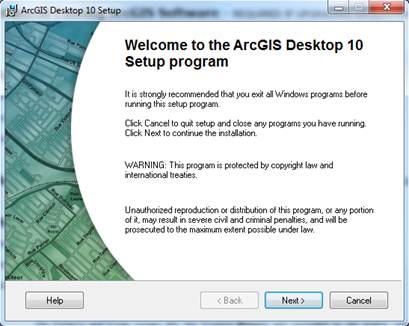

4. Run ESRI.exe you will see a window like this.
5. Select ArcGIS Desktop and follow
the instruction to complete the installation process. Always select “next”
until the installation has been finished. It will take you some time to
complete the installation, so you can have a cup of coffee and relax during
this time.

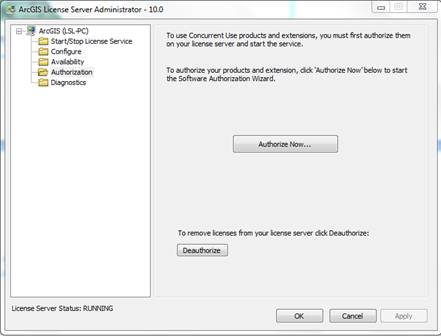

6. Authorize ArcGIS Desktop 10 single
use. After the installation, select
the desired Single Use product in the ArcGIS Administrator wizard, and click Authorize
Now. Select the default option, I have installed my software and need to
authorize it. Select Authorize with ESRI now using the Internet, and enter your personal
information and your core product authorization number.

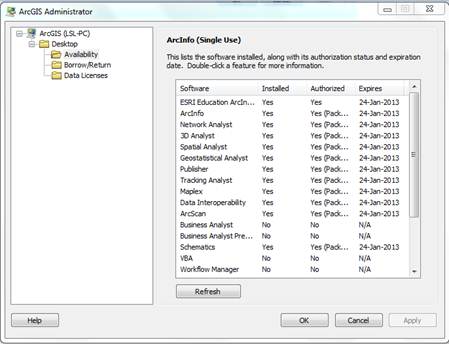

After Authorization, you will see
information like this.
Now you have successfully install
ArcGIS Desktop 10 on your computer. You
can begin your trip with this magic software.
